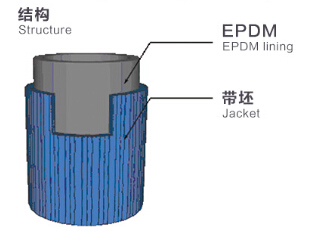

The specific EPDM liner is an amazingly thin but smooth inner waterway, yielding an extremely low friction loss for maximum flow. It is highly resistant to most chemicals, petrol products, ozone & U.V. exposure, hydrolysis, and rot & mildew.
|
内径I.D. |
工作压力(W.P)
（MPa） |
最小爆破压力 (B.P.)
（MPa） |
|
规格specification |
公称尺寸（mm）
Nominal size(mm) |
|
25 |
25.0 |
0.8-2.0 |
2.4-6.0 |
|
40 |
38.0 |
0.8-2.0 |
2.4-6.0 |
|
50 |
51.0 |
0.8-2.0 |
2.4-6.0 |
|
65 |
63.5 |
0.8-2.0 |
2.4-6.0 |
|
80 |
76.0 |
0.8-2.0 |
2.4-6.0 |
|
90 |
89.0 |
0.8-2.0 |
2.4-6.0 |
|
100 |
102.0 |
0.8-2.0 |
2.4-6.0 |
Jacket Warp: Polyester filaments or spun yarn, weft: Polyester filaments:
Weaving method: Plain or Twill
Lining Material: Synthetic Rubber
Application:,Fire cabinet,,industrials, Agriculture, Construction, shipping
standard color: white, lining color:black
Length: 20m,25m,40m, specific length upon customer’s request
Temperature range: －30℃~70℃
