PVC LINED FIRE HOSE

Standard as per GB6246-2014 C FIRE HOSE, Q/320684 ZHX008 LINED FIRE HOSE, Q/320684ZHZ010 LINED DOUBLE JACKET FIRE HOSE, Other specific requirements on customer,s request.

PVC Lining PVC lining fire hose has good properties of abrasive-resistance, aging-resistance, corrosion-resistance, long life, low flow resistance, easy winding, light & portable;

I.D.
W.P
MPa
B.P.
MPa
specification
Nominal size(mm)
25
25.0
0.8-2.0
2.46.0
40
38.0
0.8-2.0
2.46.0
50
51.0
0.8-2.0
2.46.0
65
63.5
0.8-2.0
2.46.0
80
76.0
0.8-2.0
2.46.0

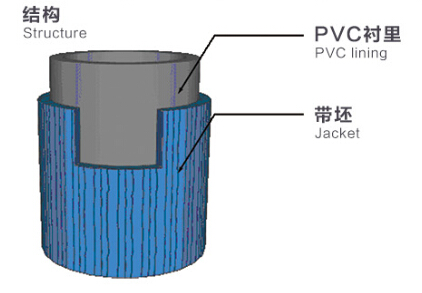

structure: PVC lining / Jacket

Jacket  Warp: Polyester filaments or spun yarn, weft: Polyester filaments:
Weaving method:  Plain or Twill
Lining  Material:PVC
Application: Fire Vehicle 1.3MPa1.6MPa2.0MPa;
Fire cabinet (0.8MPa,1.0MPa),industrials, Agriculture, Construction, shipping
Color: standard color white, lining is transparent
Length: 20m,25m,40m,  specific length upon customers request
Temperature range: 30~70
